TCP/UDP telegrams (TCPIPCONHW)

The TCP telegrams on datachange hardware (TYPE_ID TCPIPCONHW) exchanges GInOut data blocks with a peer via TCP or UDP. It uses the Gefasoft telegram protocol: when a data block changes, it is sent as a telegram; received telegrams are written into the local data blocks. The hardware can be operated as an active connection (client, connects to the peer) or as a passive connection (server, accepts connections). Optionally, a cyclic live telegram monitors the connection.

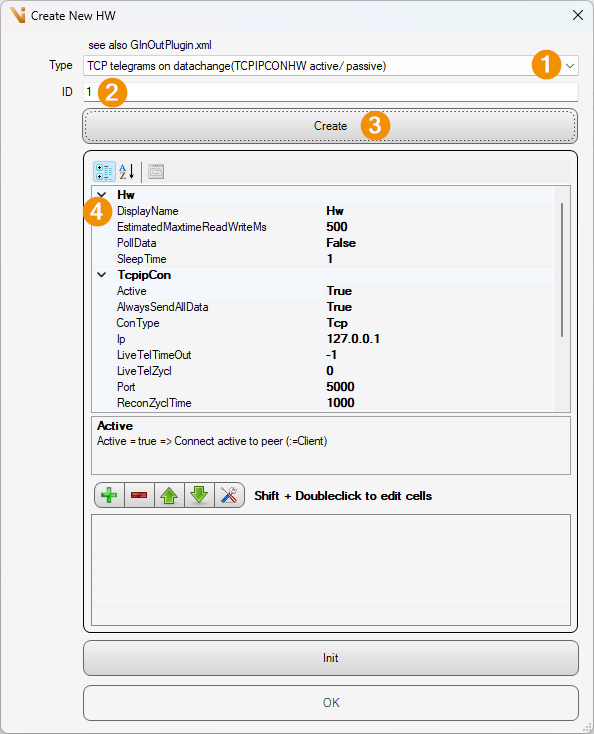

  1. Type: TCP telegrams on datachange (TCPIPCONHW active/ passive)

  2. ID: ID assigned

  3. Name suffix: Name control

  4. Create: Press button to generate object

  5. DisplayName: Name control

The following parameters are available in the settings of the hardware:

  • ConType [Default Tcp]: Connection type (Tcp or Udp). With Udp the hardware always behaves client-like (it sends via the client socket, regardless of Active).

  • Active [Default true]: true = active connection setup to the peer (client); false = passive, incoming connections are awaited on the Port (server).

  • Ip [Default 127.0.0.1]: IP address of the peer (in client operation).

  • Port [Default 5000]: Port.

  • UdpLocalIp [Default empty]: Set to bind to a specific local network adapter with UDP.

  • UdpLocalPort [Default -1]: Local UDP port; values <= 0 use the value from Port.

  • ReconZyclTime [Default 1000]: Reconnect cycle time in [ms].

  • TimeoutWaitTel [Default 500]: Timeout while waiting for a telegram.

  • LiveTelZycl [Default 0]: Cycle time of the live telegram in [ms]; values > 0 start a sender thread that cyclically sends a live telegram.

  • LiveTelTimeOut [Default -1]: If no live telegram is received within this time span [ms], the status changes to disconnected (-1 = monitoring off).

  • TwistBytesInHeader [Default true]: Swaps the byte order (endianness) in the telegram header.

  • AlwaysSendAllData [Default true]: Always sends the entire data block, even if only part of the data has changed.

  • SendBufferSize [Default 0]: Size of the TCP send buffer.

  • SendTimeout [Default 2500]: Timeout for the TCP send in [ms].

Data blocks

In addition to ID, name and length, the data block dialog contains two additional fields (columns id, name, direction, length [byte], sendOnConnect):

  • Dir [Default inout]: Direction of the data block (in, out or inout).

  • SendOnConnect [Default true]: Sends the current data of this data block immediately after the (re)connection.

See also
Gefasoft UDP
